S-5! S-5-NH 1.5 Metal Roof Clamp

S-5!, Clamp, Size NH, fits 1-1/2" Nail Strip Metal Roof Profiles, S-5-NH 1.5

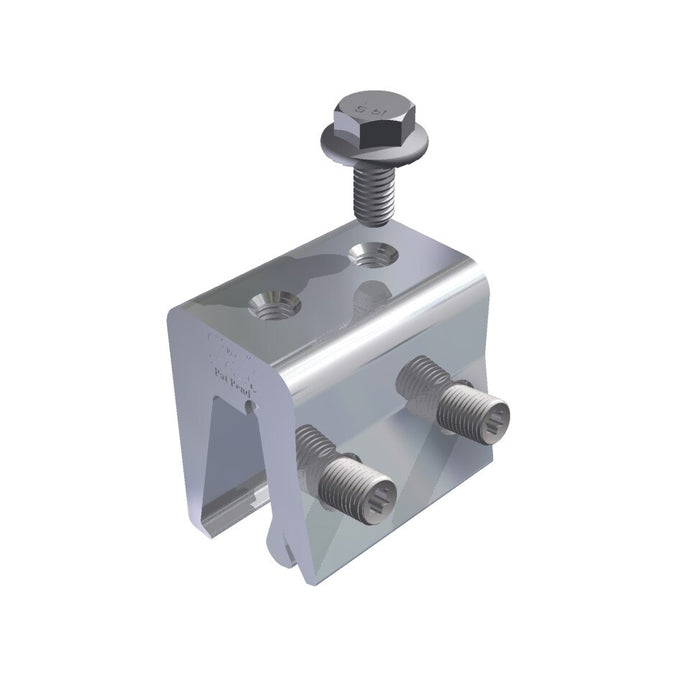

The new S-5-NH 1.5 seam clamp fits any 1-1/2? nail strip panel profile with a panel width of between 0.475? and 0.80?. Each clamp includes one (1) M8-1.25x16mm Stainless steel flanged bolt, two (2) stainless steel set screws, and a reversible insert.

Introducing the newest addition to the “N” clamp line of products, the S-5-NH 1.5 is designed specifically for 1.5” (38 mm) nail strip profiles with a wider horizontal dimension (> 0.475” and < 0.800”). The “H” stands for hinged; and the NH is an ideal mounting solution for VicWest Prestige, NewTech FF150 and similarly-dimensioned profiles.

The S-5-NH fits 1-1/2? Nail-Strip panel profiles that have a wider horizontal dimension from 0.475? to 0.8? in width.

?Features:

• Reversible Hinge allows for fit on both wide and also medium width panel profiles
• Hinged Insert conforms to shape of seam, preventing damage or puncture at the point of attachment
• Optimal Holding Strength. The toe on the hinged portion of the clamp engages the female portion of the panel
• Staked Clamp Body prevents the insert from walking during installation and tightening of set screws
• Angled Setscrews make it easier to tighten with a screwgun
• T-30 Torx setscrews improve driver bit withdrawal after the screw has been tensioned
• Standard and Mini sizes available (mini clamps should never be used with ColorGard snow retention systems)
• 6000 Series aluminum body and insert
• 300 Series stainless steel hardware
