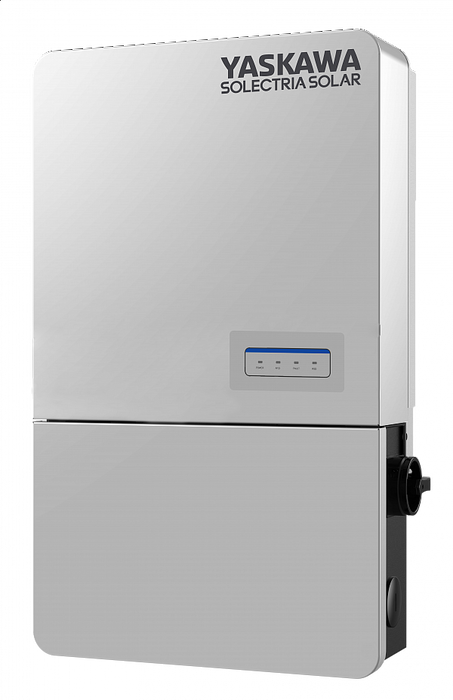

Solectria PVI-25TL-480-APS20 25.0kW 3-Ph Inverter

Yaskawa Solectria, PVI-25TL-480-R, 3-Ph Grid Tied inverter, 25kW, 480VAC WYE, 60Hz, 1000VDC, 2 MPPT, 3 inputs per MPPT, 20A Fuses, AC/DC Disconnect, Arc-Fault Detection, with Wiring Box, PLC Transmitter and Bleed-Down Circuit for Module-Level Rapid Shutdown with APsmart Receiver, NEMA 4X, UL1741-SA, Rule-21, 10 Yr Warr, PVI-25TL-480-APS20

Yaskawa Solectria Solar’s PVI 25TL is a compact grid-tied, transformerless three-phase string inverter ideal for rooftop, ground mount and carport PV arrays. The PVI 25TL inverter comes standard with AC and DC disconnects, two MPPTs, a six-position fused wiring box with fusing only for the positive conductors (NEC 2017), remote diagnostics, remote firmware upgrades and various protection features. Included is a SunSpec-compliant powerline transmitter to allow customers to meet module-level rapid shutdown requirements easily.

Features:

• ?1000 VDC; 480Vac
• UL 1741SA listed
• 2 MPPTs with 3 inputs each
• Integrated DC and AC disconnects
• AC terminals compatible with copper and aluminum conductors
• Modbus communications
• 15 - 90° installation orientation
• Remote diagnostics
• Built-in SunSpec-compliant transmitter for Module-Level Rapid Shutdown
• LED indicator lights
• Yaskawa Connect app for system visibility
