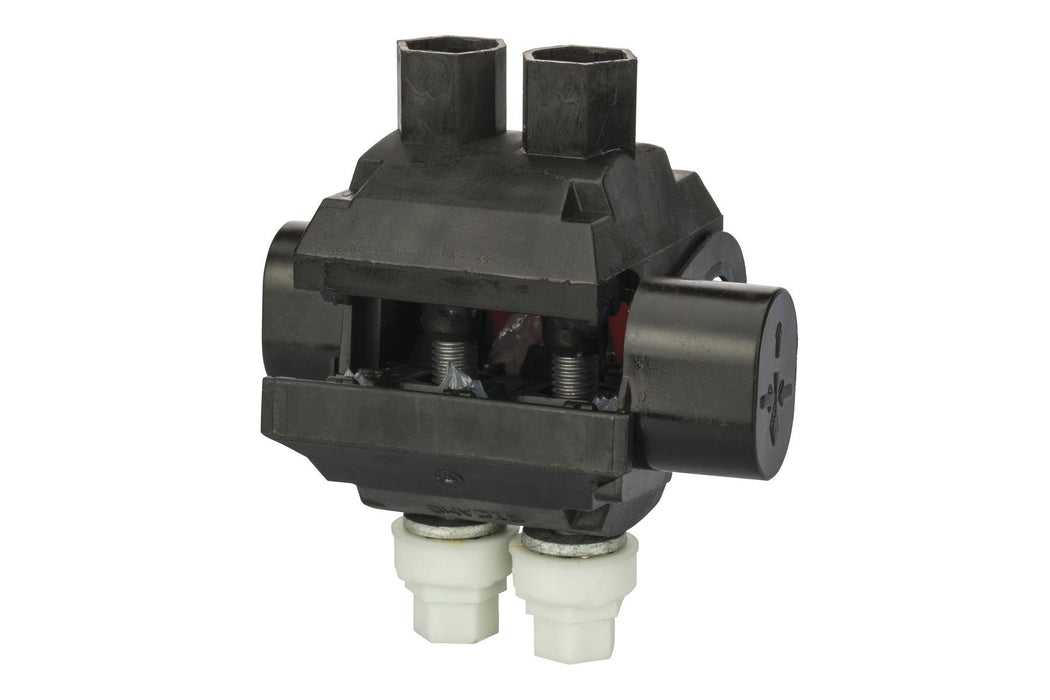

IPCS5040 Insulation Piercing Connector 500-4/0 AW

Nsi Easy-Tap Piercing Connector, 500-2/0 AWG Main, 4/0-4 AWG Tap, IPCS5040

EASY-TAP™ INSULATION PIERCING CONNECTORS IPCS SERIES

• No need to strip wire

• No tape or cover needed

• Can be installed on energized connectors

• No spacer required between connections

• “Turbo spacer” keeps tabs open during tightening

• Watertight and corrosion-free

• Connectors handle a large wire range (#14 AWG-750 MCM)

• Double shear-head bolts ensure a perfect connection every time

• Use as a splice or tap

• No special tools required

• For any combination of copper and/or aluminum wires

• Suitable for solid and/or stranded wires

• Four sizes approved for use with bare wire (4/0 to #10)

• Blue insert re-creates insulation to avoid conductor

• UL486B Listed

• Meets ANSI C119.4 requirements

• 600 V, 90° C Rated
