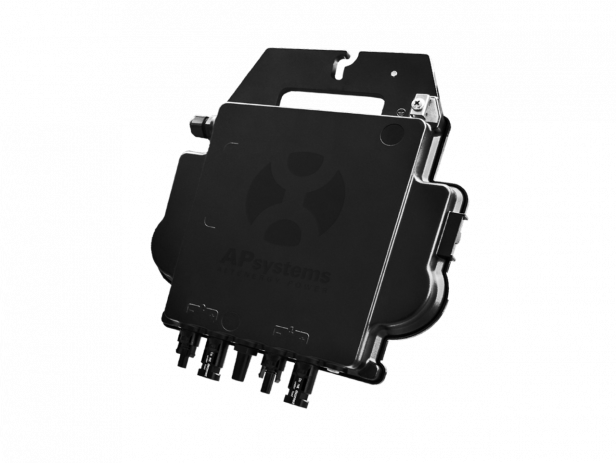

APsystems DS3 118001 DS3-L 768W Microinverter

APsystems, DS3-L Micro Inverter, compatible with Dual 60/72-cell PV Modules, 240 volt, 60Hz, 768VA Peak Power, 60Vdc, 18A X 2 Max Input, MC4 Connector, 25 year Warranty, UL1741-SA, Rule-21, 118001

APsystems’ 3rd generation of dual-module, single-phase microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.

The DS3 series reaches unprecedented levels of power output and is fully backwards compatible with QS1 and YC600 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication. An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.

The DS3 series is grid-interactive and fully compliant with CA Rule 21 requirements. With its unparalleled performance, efficiency of 97%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.
