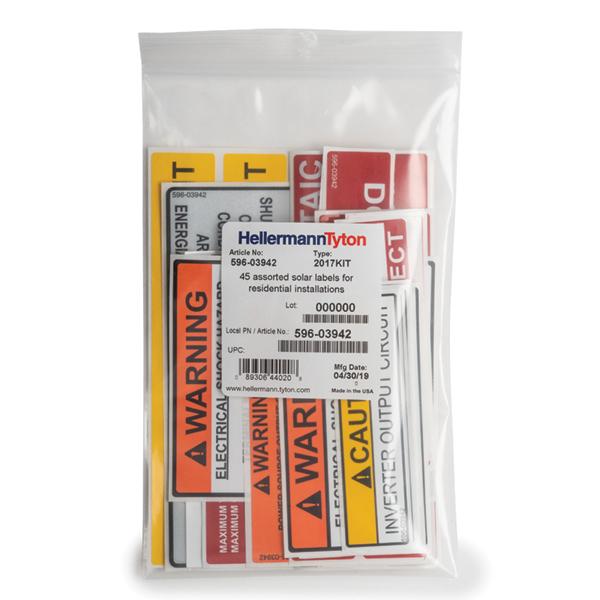

Hellermann, Labels, NEC-2017 Packaged Set, 45 Warning Labels, 596-03942
The HellermannTyton Solar Label Value Pack contains an assortment of the labels required for NEC 2017 code compliance. All labels are made from UV stable vinyl and dye-based inks and protected by a weather-resistant laminate. A permanent adhesive adds to their lasting performance. This label kit is a convenient, low-cost solution for helping to ensure your solar installation passes inspection.
See the attached Brochure for a detailed look at all labels included.
Contents of Package:
?•(6) 1" x 6.5" PHOTOVOLTAIC POWER SOURCE
•(1) 1" x 6.5" RAPID SHUTDOWN FOR SOLAR PV SYSTEM
•(1) 1" x 5" DC PHOTOVOLTAIC SOURCE CIRCUIT
•(2) 3.75" x 1" MAXIMUM DC VOLTAGE OF PV SYSTEM
•(1) 4" x 6" SOLAR PV SYSTEM EQUIPPED WITH RAPID SHUTDOWN (Yellow)
•(4) 1" x 6.5" SOLAR PV DC CIRCUIT
•(1) 1.75" x 5.5" MAIN PHOTOVOLTAIC SYSTEM AC DISCONNECT
•(1) 1" x 3.75" PHOTOVOLTAIC DC DISCONNECT
•(1) 1" x 3.75" PHOTOVOLTAIC AC DISCONNECT
•(2) 1" x 4" DC JUNCTION BOX
•(1) 1" x 4" PHOTOVOLTAIC SYSTEM kWh METER
•(1) 1" x 4" DC COMBINER BOX
•(1) 1" x 4" CAUTION: DO NOT INSTALL ADD'L LOADS IN THIS PANEL
•(1) 2" x 4" WARNING THIS SERVICE METER IS ALSO SERVED BY A PHOTOVOLTAIC SYSTEM
•(1) 2" x 4" WARNING THIS EQUIPMENT FED...AMPACITY OF BUSBAR
•(2) 2" x 4" WARNING DUAL POWER SUPPLY, ETC
•(2) 2" x 3.75" ELECTRICAL SHOCK HAZARD, ETC
•(1) 1" x 4" WARNING PV SOURCE CIRCUIT
•(1) 0.75" x 4" CAUTION: MULTIPLE SOURCES OF POWER
•(1) 1" x 4" CAUTION INVERTER OUTPUT CIRCUIT
•(1) 1" x 4" WARNING INVERTER INPUT CIRCUIT
•(3) 0.75" x 4.125" WARNING POWER SOURCE...OVERCURRENT DEVICE
•(2) 0.75" x 4.125" CAUTION PHOTOVOLTAIC SYSTEM CIRCUIT IS BACKFED
•(2) 1" x 3.75" PHOTOVOLTAIC AC DISCONNECT RATED OUTPUT
•(1) 1" x 6.5" CAUTION: SOLAR ELECTRIC SYSTEM CONNECTED
•(1) 3.75" x 5" Circuit Labels Sheet, 6 Each
•(1) 3.75" x 2.43" ELECTRICAL SHOCK HAZARD: DC Voltage Always Present
•(1) 3.75" x 2.0" THE DISCONNECTION OF THE GROUNDED CONNECTORS
•(1) 4" x 2" TURN OFF PHOTOVOLTAIC AC DISCONNECT
•(1) 1.75" x 1.375" ENERGY STORAGE DISCONNECT
•(1) 3.25" x .75" AC COMBINER BOX
•(1) 2" x 0.75" DC DISCONNECT
•(1) 1" x 6.5" DO NOT DISCONNECT UNDER LOAD
