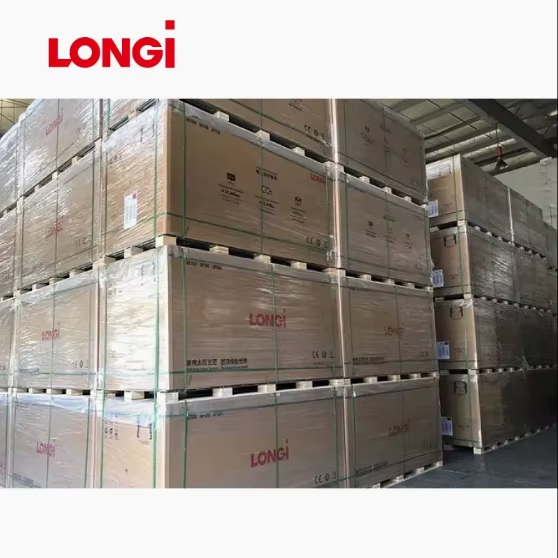

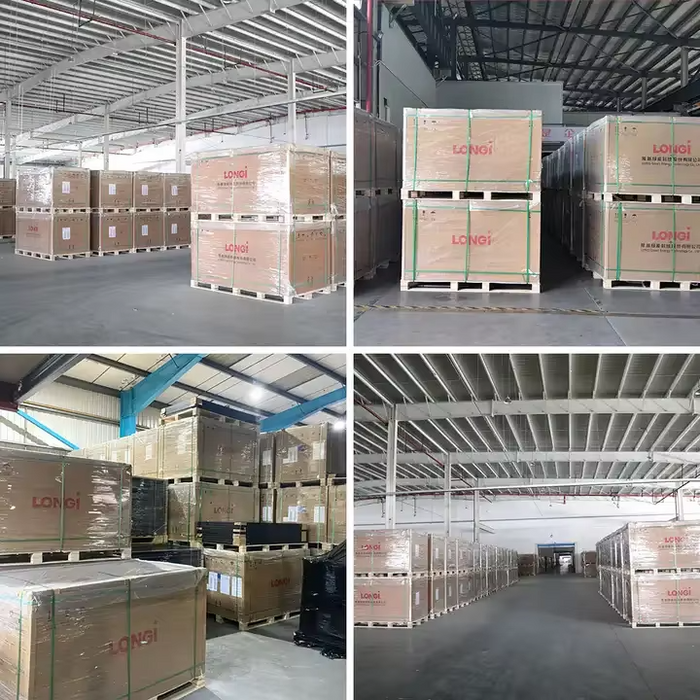

The product is sold in pallets, and each pallet contains 10 panels.

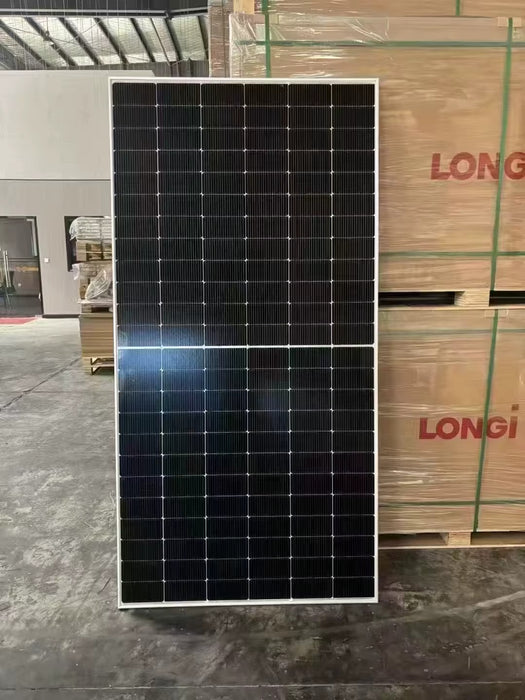

LONGi Hi-MO 7 High-Power Bifacial Double-Glass Solar Module (540W / 545W / 550W / 555W class)
Power your projects with a high-output LONGi module designed for modern commercial, industrial, and ground-mounted solar systems. This offering focuses on high wattage per panel, bifacial energy gain, and a double-glass structure for enhanced durability in demanding outdoor environments. As your direct supplier, we deliver consistent project batches, export-safe packing, and the documentation support you need for smooth installation and commissioning.
Why choose this module
-
Higher watts per panel: Reduce module count per MW and simplify installation planning.
-
Bifacial generation potential: Capture additional energy from the rear side when installed over reflective surfaces (light gravel, concrete, membranes).
-
Dual-glass durability: Double-glass construction helps improve long-term resistance to moisture, heat, and mechanical stress.
-
Grid-ready electrical design: Built for modern PV systems with high system-voltage capability and reliable protection features.
Key technical highlights
-
Cell platform: 182 mm class cell format
-
Module architecture: 144 half-cells (6×24 layout) for improved electrical performance
-
Front & rear glass: Low-iron tempered glass construction (dual-glass design)
-
Junction box: IP68 rated with 3 bypass diodes
-
Connectors: MC4 compatible
-
Cables: PV cable, 4.0 mm² (typical 300 mm lead length)
Core specifications (series-level)
-
Power range (typical options in this listing): 530W / 535W / 540W and up to the 545–555W class depending on configuration
-
Maximum system voltage: 1500V DC
-
Maximum series fuse rating: 25A
-
Typical mechanical size: 2256 × 1133 × 35 mm
-
Typical module weight: 32.3 kg
(Exact values can vary by the selected wattage and batch configuration.)
Quality & compliance support
We supply modules intended for professional PV deployment with standard safety and performance compliance alignment (such as IEC-based PV requirements) and provide supporting documents as required for your market and project file.
Recommended applications
-
Commercial & industrial rooftops
-
Ground-mounted solar farms
-
Carports and large shade structures
-
Projects where higher-watt modules reduce BOS (racking, cabling, labor) cost per installed kW
What we provide as your direct supplier
-
Project-grade supply consistency (batch matching support when requested)
-
Export-protective packing options suitable for container shipments
-
Clear labeling and documentation support for smooth site receiving and installation
