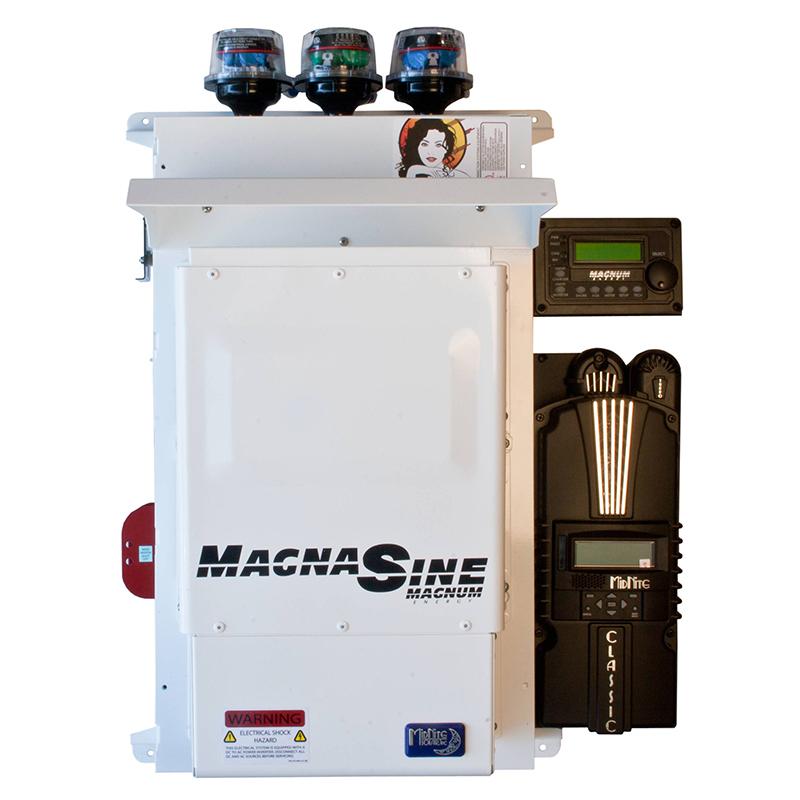

MidNite Solar, Pre-Wired Off Grid System, 120/240VAC, MS4448PAE 4400W 48V Inverter, Classic 150 & WhizBang Jr., ARC-50 display, MNE175STM-L-240 E-Panel, 3 MN-SPD, MNEMS4448PAECL150
MidNite Solar offers pre-assembled and tested power panels using Magnum, SMA, and Schneider inverters. These power panels offer a space-saving fully-integrated power-panel system. All assemblies are thoroughly tested and crating is included.
Magnum inverters are installed on the MidNite MNE250(175)STM-L gray steel E-Panel with an ME-RC50 remote display, a WhizBang Jr, a MidNite Classic 150 charge controller with built in DC-GFP and arc-fault detector, an MNDC array breaker, an MNDC charge- control breaker, two or three MNSPD surge arrestors, and battery-temperature sensors. (See Electrical Distribution Parts for details on these components) Also available with CL200 and CL250 charge controls.
The MidNite MND3R4024PAE-UPS is a battery-based backup system in a battery and equipment enclosure. It is made specifically for AC backup power. It has 120/240 VAC output, and is fully assembled and tested. Includes a Magnum MS4024 PAE inverter, Magnum ARC50, and MidNite Enclosure. It can hold four Group 31 or GC2 or GC2 tall batteries (batteries not included). 49”H x 39”W x 21”D.
The MidNite MNEMS4024PAEACCPL is a Magnum battery-based inverter system, made for AC coupling to a grid-tie inverter. It is available with 120/240 VAC output, and is fully assembled and tested. Includes a Magnum MS4024 PAE inverter, Magnum RTR router, MidNite E-Panel, two SPD surge arrestors, and GT-inverter-circuit relay. The maximum size grid-tie inverter that can be installed with this system is 3.6 kW. 30”H x 16”W x 12”D.
The MidNite MND3RACCPLME is a Magnum battery-based inverter system, made for AC coupling to a grid-tie inverter, in an outdoor enclosure with room for batteries. It has 120/240 VAC output, and is fully assembled and tested. Includes a Magnum MS4024 PAE inverter, Magnum RTR router, MidNite E-Panel, two SPD surge arrestors, and GT-inverter-circuit relay. This is all installed inside a MidNite MNBE-D3R battery enclosure which, in this configuration, can hold four Group 31 or GC2 or GC2 tall batteries (batteries not included). The maximum size grid-tie inverter that can be installed with this system is 3.6 kW. 49”H x 39”W x 21”D. The dimensions and weights are approximate and do not include crating.
Please note that not all grid-tie inverters are suitable for AC coupling; check with the inverter manufacturer.
