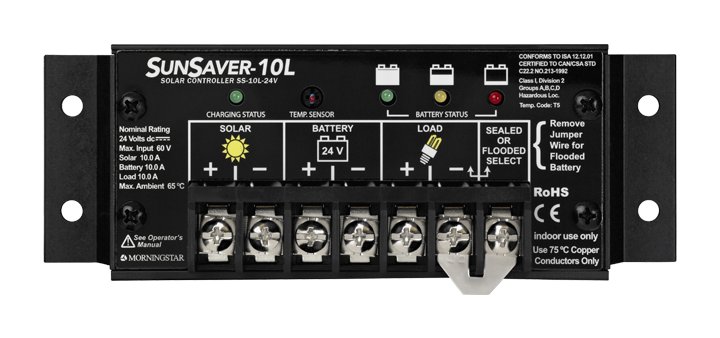

Morningstar SunSaver SS-10L-24V 10A 24Vdc PWM Charge Controller

Morningstar, SunSaver Charge Controller, 10A, 24VDC, with Low Voltage Disconnect, SS10L-24V

The SunSaver SS-10L-24V from Morningstar is the world's leading small solar controller for both technical and consumer applications, with standard features and functionality that no other small PV controller has. The technology used by SunSaver offers excellent reliability, PWM battery charging, and consistent high quality. The SunSaver solar charge controller series from Morningstar is licensed for use in hazardous environments, has been tested and certified, and is built to Morningstar's high standards.

The advanced architecture of the SunSaver provides exceptional efficiency and value. Morningstar's unique approach to designing and producing charge controllers enables SunSaver's low cost: automated assembly, ISO 9002 quality programs, latest power electronic technology, latest control, and logic technologies, and high volume manufacturing.

*All of the SunSaver L series solar charge controllers come equipt with Low Voltage Disconnect (LVD)

• Features Multiple Versions Available - There are eight different models available (12 and 24 volts, 6, 10, and 20 amps). The charging indicator is orange, while the LVD indicator is red. Choose between sealed and flooded batteries. Compensation for temperature.
• Powerful PWM Technology - Design of a sequence (not shunt). PWM service cycle varies from 0 to 100%. Setpoint precision is within 35 mV. There's no need to downgrade. For 40 amps or more, link them in parallel.
• Safety & Certifications - 100% solid-state. It's rated for a 25% overload. Fully encased in epoxy potting. Terminals with a marine rating and an anodized case. Class 1, Division 2, Groups A, B, C, and D are authorized for use in hazardous locations. Quality assurance systems based on ISO 9002.
