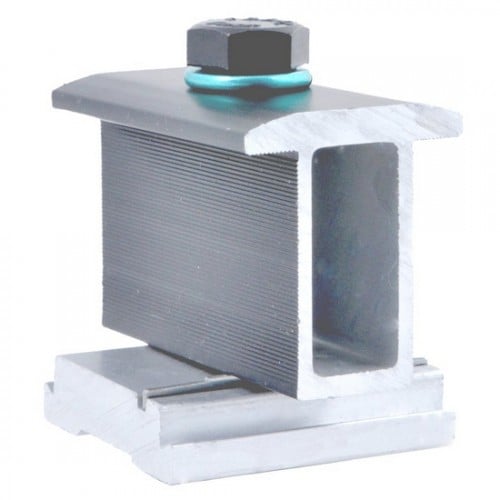

ProSolar C225IMC-1-G Clear Mid Clamp, 32.8-41.3mm

ProSolar, Mid Clamp, 2.25" (32.8mm-41.3mm), Includes (1) Channel Nut with grounding buss bar, lock washer and hardware, Clear, Qty. 1, C225IMC-1-G

To secure the module frame to the RoofTrac® support rail, the clamping system uses end and mid clamps. The structural properties of the aluminum channel are modified by this fully integrated clamping system, making it considerably stronger. Solar modules can be mounted with a lower profile on the roof, resulting in a more aesthetically appealing installation.

Module clamps are planned, extruded, and engineered specifically for each module frame. Their ingenious clamping mechanism secures the laminate in the frame by applying inward tension to the module frame. The mid clamps are kept in place with ease by channel nuts with a grounding bus bar, while the green lock washer shows the correct electrical connection.

Mid Clamp Height: 32.8-41.3 mm

You can double-check that the module thickness suits the clamp dimension. Manufacturers have the right to change measurements at any time.

Ordering Mid Clamps: For each row, take one less than the number of modules in the row and multiply that figure by 2. For example, a row of 4 modules requires 6 mid-clamps: (4 - 1) x 2 = 6.
