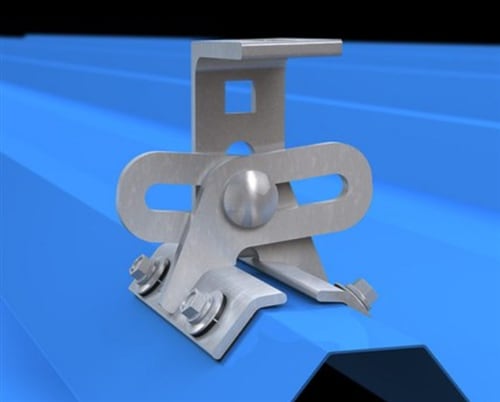

S-5! ProteaBracket-AL Aluminum Bracket

S-5!, ProteaBracket, Aluminum, for Metal Trapezoidal Rib, includes L-Flange, Bolt and 4 x Self-Tap SS screws, ProteaBracket-AL

The ProteaBracket is the most versatile Solar PV attachment solution on the market. It fits most trapezoidal sheet profiles, including pre-assembled foam core panels (IMPs - Insulated Metal Panels).

• Adjustable attachment base to accommodate varying rib widths, heights, and angles with multiple module mounting options
• Attached to the sheeting-only, no messy sealants and comes with a factory-applied, EPDM pad to ensure quick installation and a weather-proof fit

ProteaBracket is mounted directly onto the crown of the trapezoidal sheet using stainless-capped screws (provided) or Bulb-Tite rivets (sold separately). It has been rigorously tested for load-to-failure results in sheeting-only.

Choose ProteaBracket for a versatile solar attachment solution. Pair with the S-5-PVKIT® for a direct-attach solution – also ideal for both side-bolted and bottom-bolted rail mounting.

Specifications:

• 34% lighter than similar stainless steel alternatives – saves on shipping
• Stronger L-Foot
• L-Foot allows for side-mount rails in its vertical orientation OR bottom-mount rails or PVKIT in its horizontal orientation
• Corrosion-resistant materials
• Adjustable–fits rib profiles up to 3?
• Peel-and-Stick prevents accidental shifting during installation
• Fully pre-assembled
• 4 self-piercing screws included
