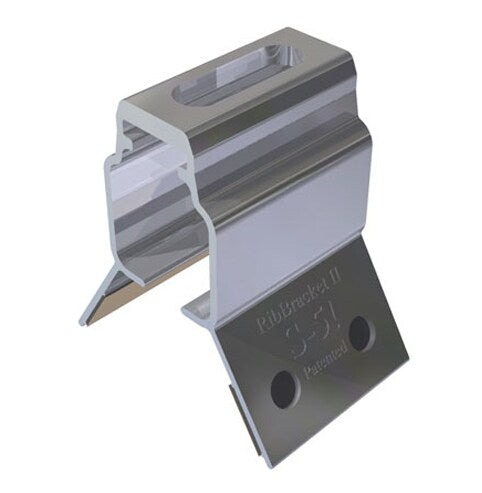

S-5! RibBracket II Metal Roof Clamp

S-5!, Clamp, RibBracket II, mount for corrugated metal roofs to mount directly into the crown, with EPDM rubber gasket seal, (4) 8mm thru holes & (1) slotted .4" x 1.25" hole, 4 self-tapping screws & 1, M8 flange nut included, RibBracket II

RibBracket II can be used to mount almost anything onto popular African and Australasion profiles such as Lysaght Trimdeck 1015, Safintra Trimflute 1015 and similarly dimensioned exposed-fastened, trapezoidal roof profiles. No messy sealants to apply! No chance for leaks! The RibBracket comes with a factory-applied EPDM rubber gasket seal already on the base, and the S-5!® patented reservoir conceals the EPDM from UV exposure, preventing drying and cracks. Installation is simple!

The RibBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure through the pre-punched holes using the appropriate fasteners or Bulb-tite rivets for the supporting roof material. RibBracket is the perfect match for our S-5-PV Kit, or any other ancillary application, without worrying about cold bridging! RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.

Other RibBrackets: RibBracket I, RibBracket III and RibBracket IV. RibBracket II can be used to mount snow retention systems like ColorGard, solar racking systems and S-5! PV 2.0 Kits, as well as just about anything else you need to mount to a metal roof. All pre-punched holes must be used to achieve tested strength. RibBracket includes four (4) 1/4-14 screws for mounting, and one (1) M8 hex nut.
